Tesla Model 3 - Wheel And Tire Guide

Welcome to the ultimate Tesla wheel and tire guide—a comprehensive resource tailored for Tesla enthusiasts and owners of the Tesla Model S, Model 3, Model X, Model Y and Cybertruck. This guide provides all the critical details you need to upgrade or replace your wheels and tires with confidence. You'll find specifications for OEM and aftermarket options, including wheel diameters and widths, offsets, bolt pattern, center bore, and OEM tire sizes and compatibility for every Tesla model. Plus, explore our premium aftermarket wheel options like UP Forged wheels or our wheels in collaboration with BBS, all designed and engineered for style, strength and performance. Navigate by model to ensure your Tesla is equipped with the best fitment, whether you’re seeking maximum performance, on-track or off-road, or looking to improve range efficiency and aesthetic appeal.
2024+ Tesla Model 3
2017-2023 Tesla Model 3
Tesla Model 3 – Wheel And Tire Guide

2024+ Tesla Model 3

The refreshed 2024+ Tesla Model 3 builds on its predecessor’s success with improved powertrain, suspension upgrades, aerodynamic enhancements and interior upgrades. Wheel options range from the factory 18″ Photon, to the 19″ Nova and the first-ever staggered fitment for Model 3 Performance with the Warp wheel design that measures 20” by 9” in the front, and 10” in the rear to account for the car’s additional power. Our comprehensive guide includes detailed specifications for our aftermarket options including staggered UP-03 and UP-05 Forged wheels in 19” and 20” options that allow for retention of OEM tires and TPMS sensors while offering lower offsets for a more aggressive OEM+ stance. Other benefits include lightweight designs that maximize strength to improve handling dynamics. Wider tire fitments include widths ranging from 275 to 295 for maximum track and canyon trips.

2024+ Tesla Model 3 / Model 3 Performance

OEM Wheel & Tire Guide

BELOW IS THE COLLECTION for 2024+ Tesla Model 3

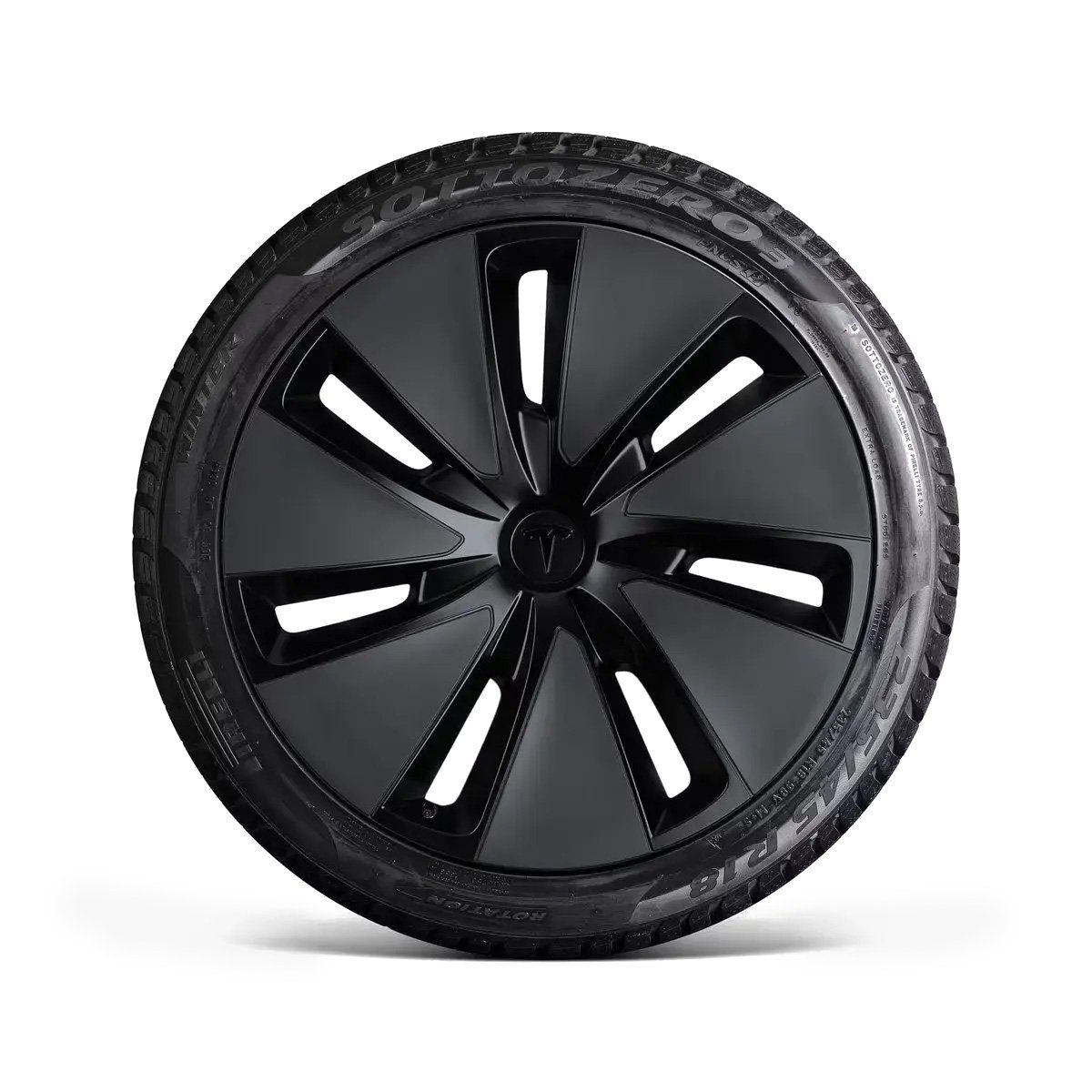

18" Tesla Model 3 - Photon Aero Wheel
Model Years
2024+
Size + Offset
18x8.5" +40
Bolt Pattern
5x114.3
Center Bore
64.1mm
Lug Nut Size
21 mm / 14x1.50 Thread
Lug Nut Torque Spec
129 lb-ft
Weight (lbs)
TBD
Weight (kgs)
TBD
Standard/Optional
Standard
OEM Tire Size
235/45R18
Tire Overall Diameter
26.3"
Tesla-Installed Tire
Michelin Primacy A/S

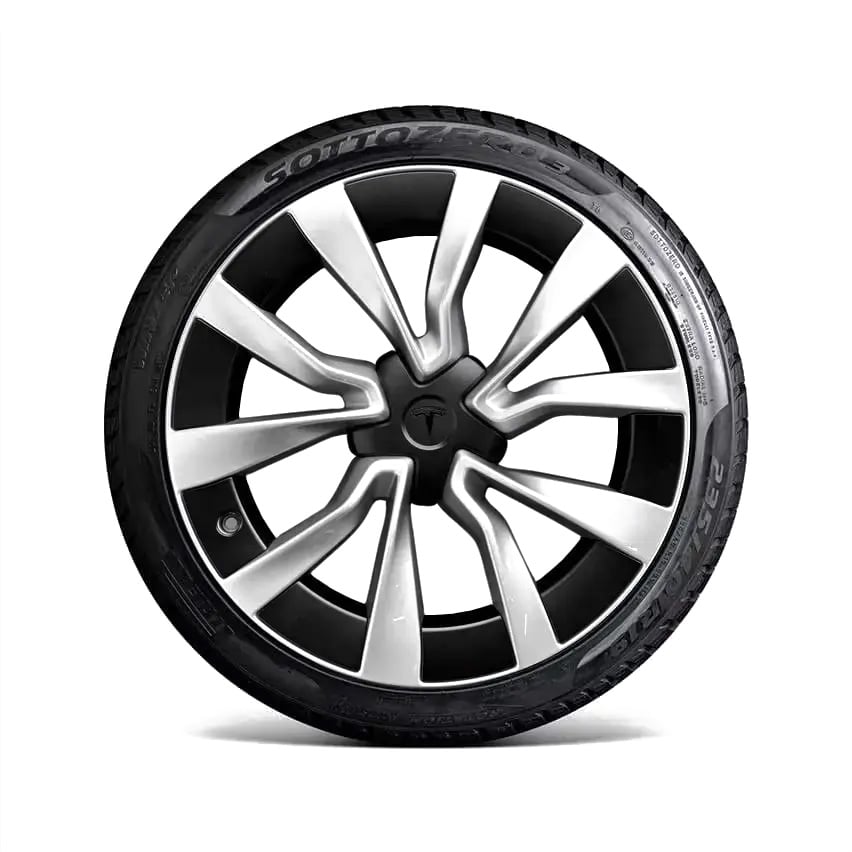

19" Tesla Model 3 - Nova Wheel
Model Years
2024+
Size + Offfset
19x8.5" +40
Bolt Pattern
5x114.3
Center Bore
64.1mm
Lug Nut Size
21 mm / 14x1.50 Thread
Lug Nut Torque Spec
129 lb-ft
Weight (lbs)
TBD
Weight (kgs)
TBD
Standard/Optional
Optional: $1,500
OEM Tire Size
235/40R19
Tire Overall Diameter
26.4"
Tesla-Installed Tire
Goodyear Eagle Sport / Continental ProContact RX All Season T1

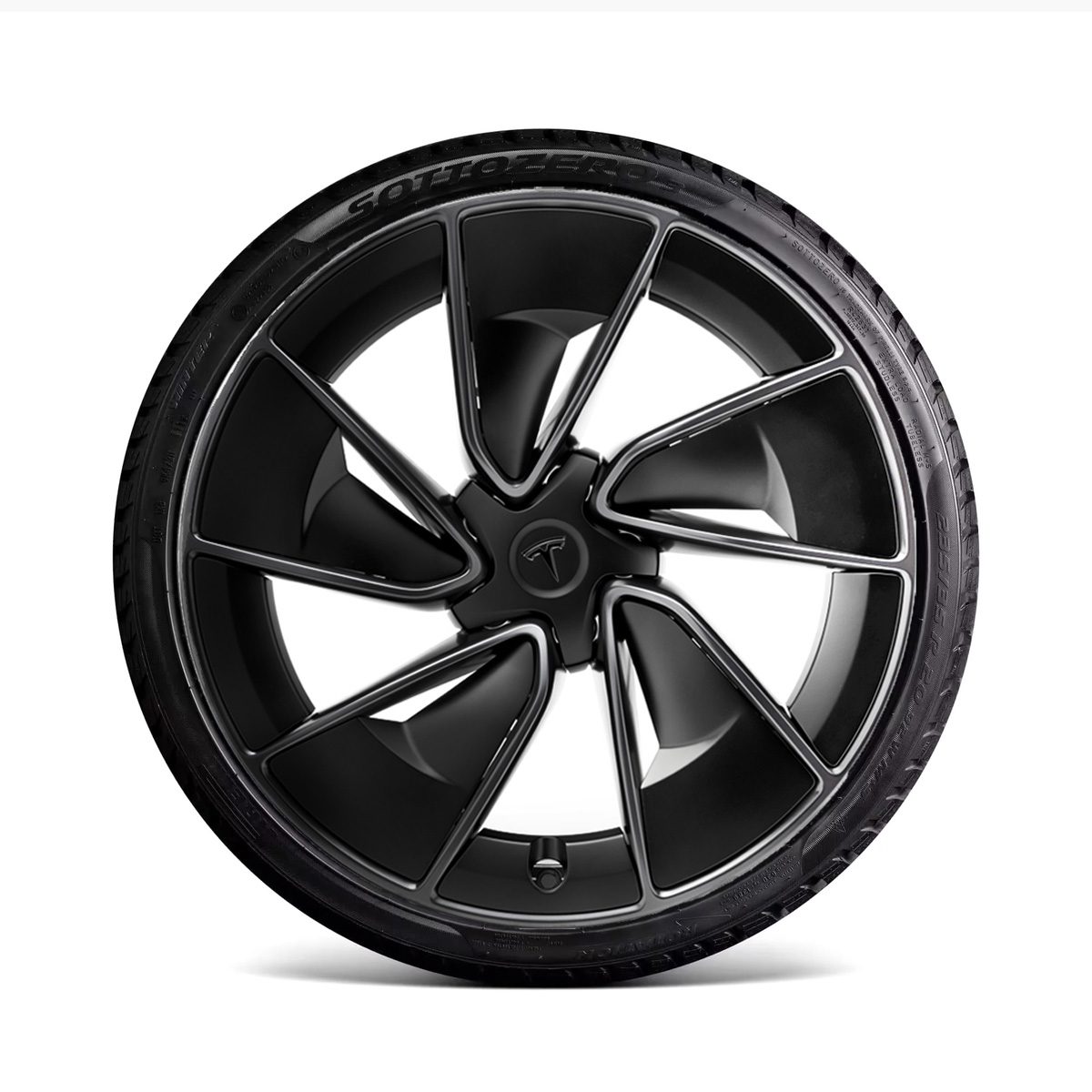

20’’ Tesla Model 3 - Warp Wheels
Model Years
2024+
Size + Offset
Front: 20x9" +34 / Rear: 20x10" +45
Bolt Pattern
5x114.3
Center Bore
64.1mm
Lug Nut Size
21 mm / 14x1.50 Thread
Lug Nut Torque Spec
129 lb-ft
Weight (lbs)
Front: 22.7 lbs (24.3 lbs w/ cover) / Rear: 23.4 lbs (25.0 lbs w/ cover)
Weight (kgs)
Front: 10.29 kgs (11.02 kgs w/ cover) / Rear: 10.61 kgs (10.89 kgs w/cover)
Standard/Optional
Standard on Performance Models
OEM Tire Size
Front: 235/35R20 / Rear: 275/30R20
Tire Overall Diameter
Front: 26.5" / Rear: 26.5"
Tesla-Installed Tire
Pirelli P Zero 4

2024+ Tesla Model 3 / Performance

Wheel & Tire Guide for UP Wheels

UP-02
18" 19" 20"
Model Years
All Years
Size + Offset
  • Front: 18x9+33 Rear: 18x9+33
  • Front: 18x9+20 Rear: 18x9+20
  • Front: 18x9.5+35 Rear: 18x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    18x9+20 - 19.1 lbs
    Weight (kgs)
    18x9+20 - 8.66 kg
    Recommended Tire Size
  • 245/45R18 / 245/45R18 - Front: 18x9+33 Rear: 18x9+33
  • 245/45R18 / 245/45R18 - Front: 18x9+20 Rear: 18x9+20
  • 265/40R18 / 265/40R18 - Front: 18x9.5+35 Rear: 18x9.5+35
  • Model Years
    All Years
    Size + Offset
  • Front: 19x9+33 Rear: 19x9+33
  • Front: 19x9.5+35 Rear: 19x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    19x9+33 - 20.5
    Weight (kgs)
    19x9+33 - 9.30 kg
    Recommended Tire Size
  • 245/40R19 / 245/40R19 - Front: 19x9+33 Rear: 19x9+33
  • 265/35R19 / 265/35R19 - Front: 19x9.5+35 Rear: 19x9.5+35
  • Model Years
    All Years
    Size + Offset
  • Front: 20x9+33 Rear: 20x9+33
  • Front: 20x9.5+35 Rear: 20x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    20x9+33 - 21.5 lbs
    Weight (kgs)
    20x9+33 - 9.75 kg
    Recommended Tire Size
  • 245/35R20 / 245/35R20 - Front: 20x9+33 Rear: 20x9+33
  • 265/30R20 / 265/30R20 - Front: 20x9.5+35 Rear: 20x9.5+35
  • UP-03
    18" 19" 20"
    Model Years
    All Years
    Size + Offset
  • Front: 18x9+20 Rear: 18x9+20
  • Front: 18x9+33 Rear: 18x9+33
  • Front: 18x9.5+35 Rear: 18x9.5+35
  • Front: 18x10.9+37 Rear: 18x10.9+37
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
  • 18x9+20 - 19.62 lbs
  • 18x9+33 - 18.8 lbs
  • 18x9.5+35 - 19.82 lbs
  • 18x10.5+40 - 20.88 lbs
  • 18x10.9+22 - 21.90 lbs
  • 18x10.9+37 - 21.10 lbs
  • Weight (kgs)
  • 18x9+20 - 8.90 kg
  • 18x9+33 - 8.53 kg
  • 18x9.5+35 - 8.99 kg
  • 18x10.5+40 - 9.47 kg
  • 18x10.9+22 - 9.93 kg
  • 18x10.9+37 - 9.57 kg
  • Recommended Tire Size
  • 245/45R18 / 245/45R18 - Front: 18x9+20 Rear: 18x9+20
  • 245/45R18 / 245/45R18 - Front: 18x9+33 Rear: 18x9+33
  • 265/40R18 / 265/40R18 - Front: 18x9.5+35 Rear: 18x9.5+35
  • 295/35R18 / 295/35R18 - Front: 18x10.9+37 Rear: 18x10.9+37
  • Model Years
    All Years
    Size + Offset
  • Front: 19x9+25 Rear: 19x10+30
  • Front: 19x9+33 Rear: 19x9+33
  • Front: 19x9.5+35 Rear: 19x9.5+35
  • Front: 19x10+30 Rear: 19x10+30
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
  • 19x9+33 - 20.00 lbs
  • 19x9.5+35 - 20.56 lbs
  • 19x10.5+40 - 21.04 lbs
  • Weight (kgs)
  • 19x9+33 - 9.07 kg
  • 19x9.5+35 - 9.33 kg
  • 19x10.5+40 - 9.54 kg
  • Recommended Tire Size
  • 245/40R19 / 275/35R19 - Front: 19x9+25 Rear: 19x10+30
  • 245/40R19 / 245/40R19 - Front: 19x9+33 Rear: 19x9+33
  • 265/35R19 / 265/35R19 - Front: 19x9.5+35 Rear: 19x9.5+35
  • 275/35R19 / 275/35R19 - Front: 19x10+30 Rear: 19x10+30
  • Model Years
    All Years
    Size + Offset
  • Front: 20x9+25 Rear: 20x10+30
  • Front: 20x9+33 Rear: 20x9+33
  • Front: 20x9.5+35 Rear: 20x9.5+35
  • Front: 20x10+30 Rear: 20x10+30
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
  • 20x9+33 - 21.38 lbs
  • 20x9.5+35 - 21.46 lbs
  • 20x10.5+40 - 21.98 lbs
  • 21x10.5+40 - 24.08 lbs
  • Weight (kgs)
  • 20x9+33 - 9.70 kg
  • 20x9.5+35 - 9.73 kg
  • 20x10.5+40 - 9.97 kg
  • 21x10.5+40 -10.92 kg
  • Recommended Tire Size
  • 235/35R20 / 275/30R20 - Front: 20x9+25 Rear: 20x10+30
  • 245/35R20 / 245/35R20 - Front: 20x9+33 Rear: 20x9+33
  • 265/30R20 / 265/30R20 - Front: 20x9.5+35 Rear: 20x9.5+35
  • 275/30R20 / 275/30R20 - Front: 20x10+30 Rear: 20x10+30
  • UP-04
    18" 19" 20"
    Model Years
    All Years
    Size + Offset
  • Front: 18x9+33 Rear: 18x9+33
  • Front: 18x9+20 Rear: 18x9+20
  • Front: 18x9.5+35 Rear: 18x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    Weight (kgs)
    Recommended Tire Size
  • 245/45R18 / 245/45R18 - Front: 18x9+33 Rear: 18x9+33
  • 245/45R18 / 245/45R18 - Front: 18x9+20 Rear: 18x9+20
  • 265/40R18 / 265/40R18 - Front: 18x9.5+35 Rear: 18x9.5+35
  • Model Years
    All Years
    Size + Offset
  • Front: 19x9+33 Rear: 19x9+33
  • Front:19x9.5+35 Rear: 19x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    Weight (kgs)
    Recommended Tire Size
  • 245/40R19 / 245/40R19 - Front: 19x9+33 Rear: 19x9+33
  • 265/35R19 / 265/35R19 - Front: 19x9.5+35 Rear: 19x9.5+35
  • Model Years
    All Years
    Size + Offset
  • Front: 20x9+33 Rear: 20x9+33
  • Front: 20x9.5+35 Rear: 20x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    Weight (kgs)
    Recommended Tire Size
  • 245/35R20 / 245/35R20 - Front: 20x9+33 Rear: 20x9+33
  • 265/30R20 / 265/30R20 - Front: 20x9.5+35 Rear: 20x9.5+35
  • UP-05
    18" 19" 20"
    Model Years
    All Years
    Size + Offset
  • Front: 18x9+20 Rear: 18x9+20
  • Front: 18x9+33 Rear: 18x9+33
  • Front: 18x9.5+35 Rear: 18x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
  • 18x9+20 - 20.88 lbs
  • 18x9+33 - 21.30 lbs
  • 18x9.5+35 - 21.52 lbs
  • Weight (kgs)
  • 18x9+20 - 9.47 kg
  • 18x9+33 - 9.66 kg
  • 18x9.5+35 - 9.76 kg
  • Recommended Tire Size
  • 245/45R18 / 245/45R18 - Front: 18x9+20 Rear: 18x9+20
  • 245/45R18 / 245/45R18 - Front: 18x9+33 Rear: 18x9+33
  • 265/40R18 / 265/40R18 - Front: 18x9.5+35 Rear: 18x9.5+35
  • Model Years
    All Years
    Size + Offset
  • Front: 19x9+25 Rear: 19x10+30
  • Front: 19x9+33 Rear: 19x9+33
  • Front: 19x9.5+35 Rear: 19x9.5+35
  • Front: 19x10+30 Rear: 19x10+30
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
  • 19x9+33 - 22.64 lbs
  • 19x9.5+35 - 22.80 lbs
  • 19x10.5+40 - 23.22 lbs
  • Weight (kgs)
  • 19x9+33 - 10.27 kg
  • 19x9.5+35 - 10.34 kg
  • 19x10.5+40 - 10.53 kg
  • Recommended Tire Size
  • 245/40R19 / 275/35R19 - Front: 19x9+25 Rear: 19x10+30
  • 245/40R19 / 245/40R19 - Front: 19x9+33 Rear: 19x9+33
  • 265/35R19 / 265/35R19 - Front: 19x9.5+35 Rear: 19x9.5+35
  • 275/35R19 / 275/35R19 - Front: 19x10+30 Rear: 19x10+30
  • Model Years
    All Years
    Size + Offset
  • Front: 20x9+25 Rear: 20x10+30
  • Front: 20x9+33 Rear: 20x9+33
  • Front: 20x9.5+35 Rear: 20x9.5+35
  • Front: 20x10+30 Rear: 20x10+30
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
  • 20x9+25 - 23.84 lbs
  • 20x9+33 - 23.76 lbs
  • 20x9.5+35 - 24.10 lbs
  • 20x10+30 - 24.82 lbs
  • 20x10.5+40 - 24.56 lbs
  • 21x9.5+35 - 25.62 lbs
  • 21x10.5+40 - 26.5 lbs
  • Weight (kgs)
  • 20x9+25 - 10.81 kg
  • 20x9+33 - 10.77 kg
  • 20x9.5+35 - 10.93 kg
  • 20x10+30 - 11.26 kg
  • 20x10.5+40 - 11.14 kg
  • 21x9.5+35 - 11.62 kg
  • 21x10.5+40 - 12.02 kg
  • Recommended Tire Size
  • 235/35R20 / 275/30R20 - Front: 20x9+25 Rear: 20x10+30
  • 245/35R20 / 245/35R20 - Front: 20x9+33 Rear: 20x9+33
  • 265/30R20 / 265/30R20 - Front: 20x9.5+35 Rear: 20x9.5+35
  • 275/30R20 / 275/30R20 - Front: 20x10+30 Rear: 20x10+30
  • CYBRHEX
    20"
    Model Years
    All Years
    Size + Offset
    Front: 20x9.5+35 Rear: 20x9.5+35
    Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    20x9.5+35 - 31.24 lbs
    Weight (kgs)
    20x9.5+35 - 14.17 kg
    Recommended Tire Size
    265/30R20 / 265/30R20 - Front: 20x9.5+35 Rear: 20x9.5+35
    UP X BBS FLUGPLATZ
    20"
    Model Years
    All Years
    Size + Offset
    Front: 20x9+32 Rear: 20x9+32
    Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    20x9+32 - 28.80 lbs
    Weight (kgs)
    20x9+32 - 13.07 kg
    Recommended Tire Size
    255/35R20 / 255/35R20 - Front: 20x9+32 Rear: 20x9+32
    UP.FIT Forged PD
    18"
    Model Years
    All Years
    Size + Offset
    Front: 18x8.5+30 Rear: 18x8.5+30
    Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    18x8.5+30 - 24.26 lbs
    Weight (kgs)
    18x8.5+30 - 11.01 kg
    Recommended Tire Size
    235/45R18 / 235/45R18 - Front: 20x9+32 Rear: 20x9+32
    UP-RW Wheel
    18" 19" 20"
    Model Years
    All Years
    Size + Offset
    Front: 18x8.5 +32. Rear: 18x8.5 +32
    Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    23.54lbs
    Weight (kgs)
    10.2kg
    Recommended Tire Size
    235/45 R18
    Model Years
    All Years
    Size + Offset
    Front: 19x8.5+32 Rear: 19x8.5+32
    Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    23.54lbs
    Weight (kgs)
    10.7kg
    Recommended Tire Size
    235/40 19
    Model Years
    All Years
    Size + Offset
    20x8.5+32
    Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    25.96lbs
    Weight (kgs)
    11.8kg
    Recommended Tire Size
    235/35 20

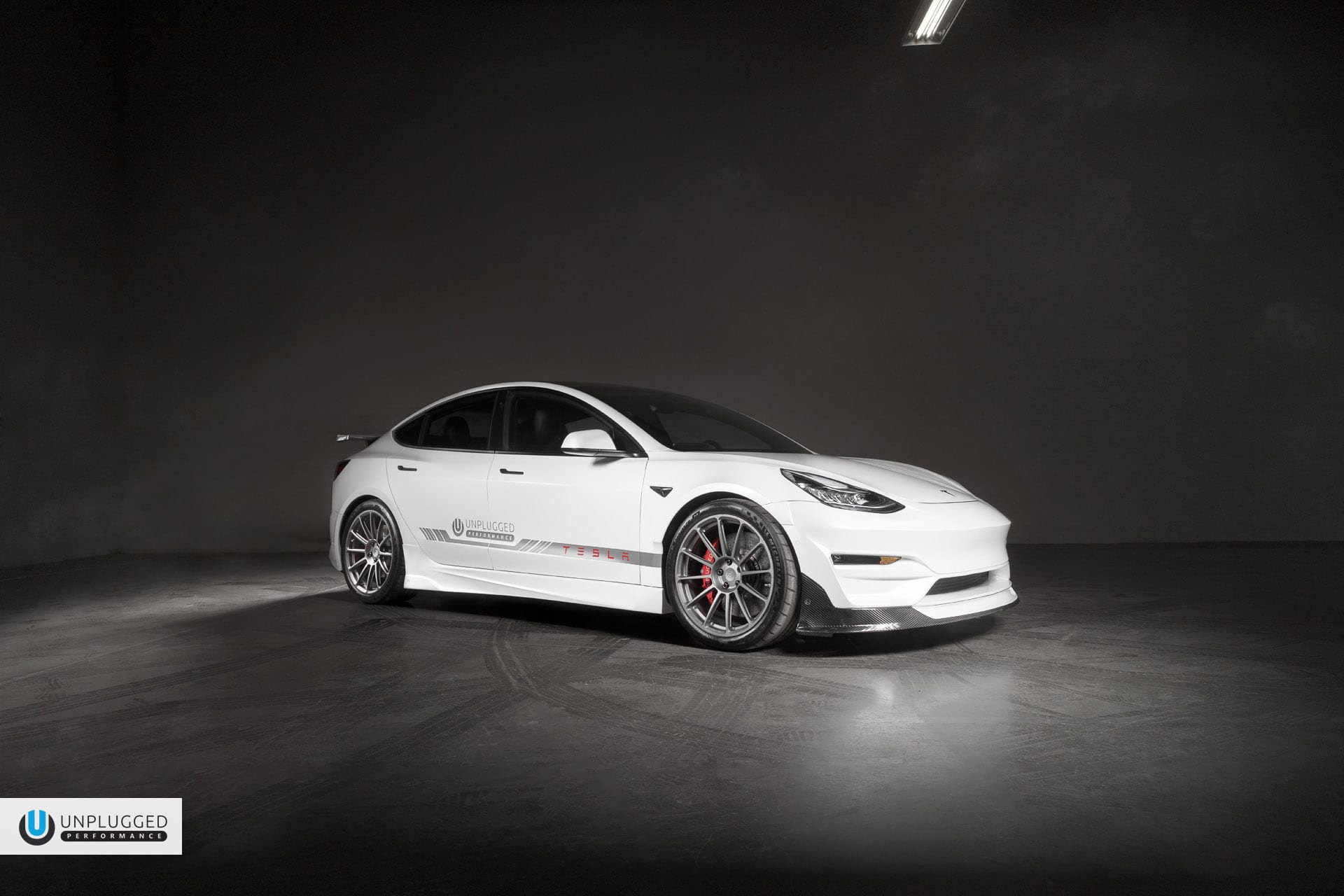

    Tesla Model 3 – Wheel And Tire Guide

    2017-2023 Tesla Model 3

    The 2017–2023 Tesla Model 3 set the standard for affordable electric vehicles and benefits from a diverse array of wheel and tire configurations for the range of models including Rear-Wheel Drive, Dual Motor Long Range and Dual Motor Performance. Factory Tesla wheels include 18″ Aero Wheels for improved range, 19″ Sport Wheels for a balanced performance aesthetic, and the iconic 20″ Überturbine Wheels found on Performance trims. Our guide covers our Unplugged Performance aftermarket upgrades that include both UP Forged wheels and UPxBBS wheels. UP lightweight wheels offer improved performance with wider fitments, and OEM+ sizes and fitments for optimized efficiency.

    2017-2023 Tesla Model 3 / Model 3 Performance

    OEM Wheel & Tire Guide

    BELOW IS THE COLLECTION for 2017-2023 Tesla Model 3

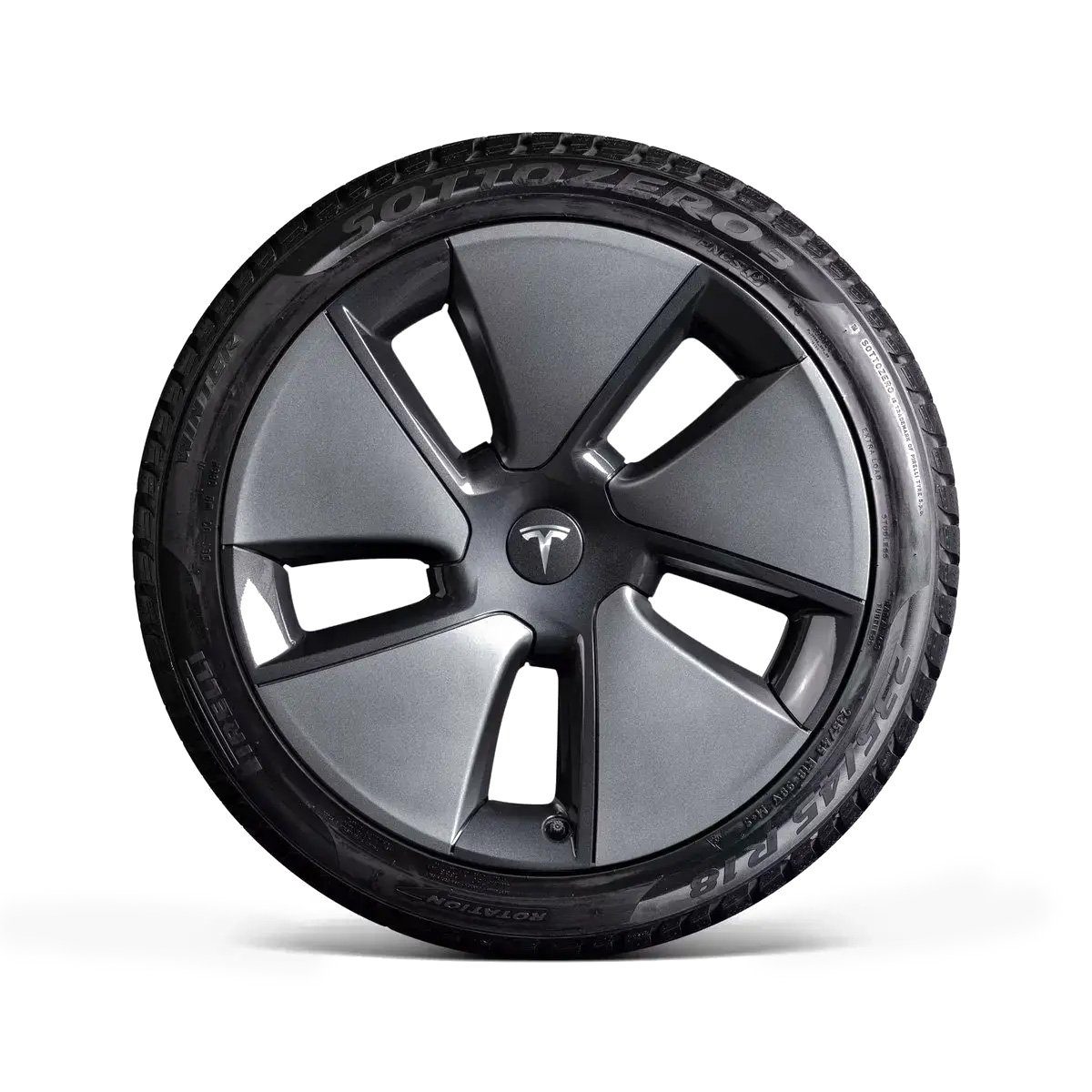

    18" Tesla Model 3 - Aero Wheel
    Model Years
    2017-2023
    Size + Offset
    18x8.5" +40
    Bolt Pattern
    5x114.3
    Center Bore
    64.1mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 lb-ft
    Weight (lbs)
    21.6 lbs (23 lbs w/ cover)
    Weight (kgs)
    9.79 kgs (10.43 kgs w cover)
    Standard/Optional
    Standard
    OEM Tire Size
    235/45R18
    Tire Overall Diameter
    26.3"
    Tesla-Installed Tire
    Michelin Primacy MXM4

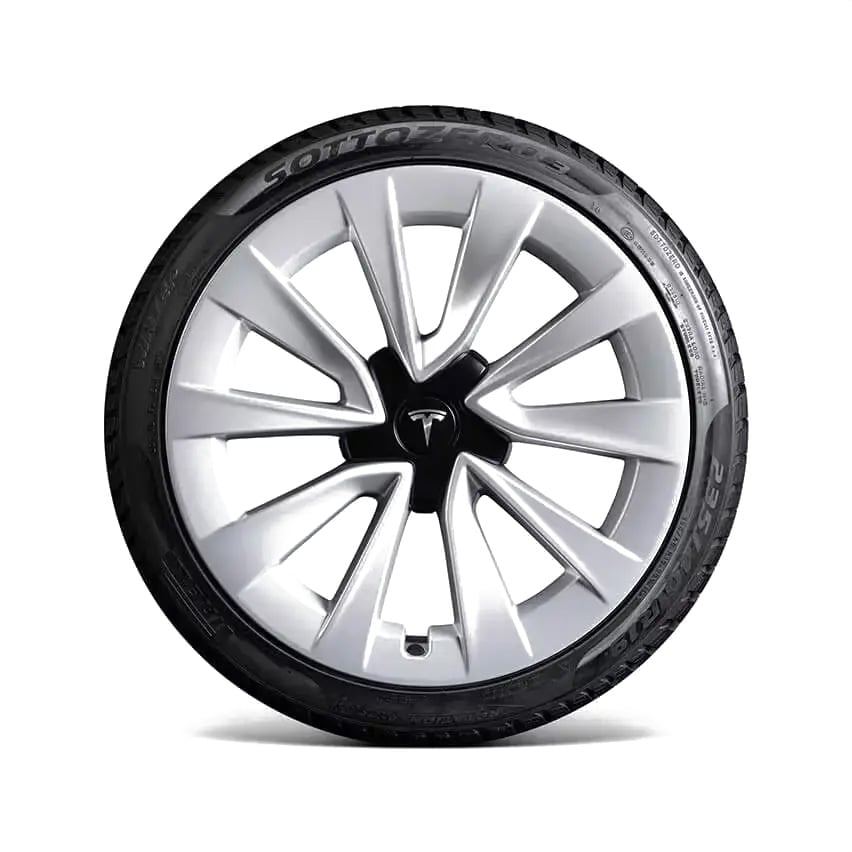

    19" Tesla Model 3 - Sport Wheel
    Model Years
    2020-2023
    Size + Offset
    19x8.5" +40
    Bolt Pattern
    5x114.3
    Center Bore
    64.1mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 lb-ft
    Weight (lbs)
    25 lbs
    Weight (kgs)
    11.34 kgs
    Standard/Optional
    Optional: $1,500
    OEM Tire Size
    235/40R19
    Tire Overall Diameter
    26.4"
    Tesla-Installed Tire
    Continental ProContact RX / Hankook Ventus S1evo3
    20" Tesla Model 3 - Stiletto Wheel
    Model Years
    2018-2020
    Size + Offset
    20x8.5" +35
    Bolt Pattern
    5x114.3
    Center Bore
    64.1mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 lb-ft
    Weight (lbs)
    28.5 lbs
    Weight (kgs)
    12.93 kgs
    Standard/Optional
    Standard on Performance Models
    OEM Tire Size
    235/35R20
    Tire Overall Diameter
    26.5"
    Tesla-Installed Tire
    Michelin Pilot Sport 4S

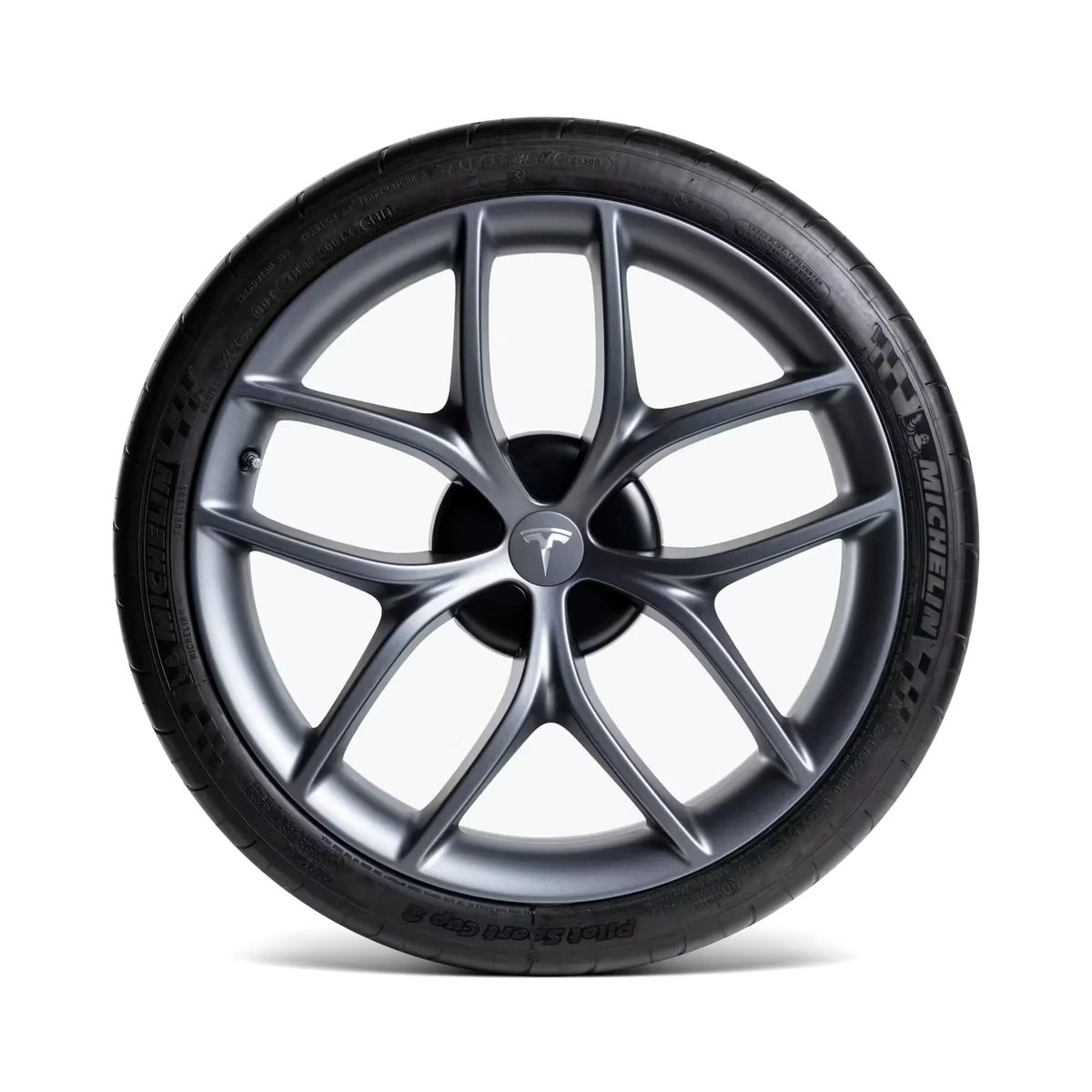

    20" Tesla Model 3 - Zero G Wheel
    Model Years
    2020-2023
    Size + Offset
    20x9.0" +34
    Bolt Pattern
    5x114.3
    Center Bore
    64.1mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 lb-ft
    Weight (lbs)
    21.5 lbs
    Weight (kgs)
    9.75 kgs
    Standard/Optional
    Included In Track Package: $5,500
    OEM Tire Size
    245/35R20
    Tire Overall Diameter
    26.8"
    Tesla-Installed Tire
    Michelin Pilot Sport Cup 2
    20" Tesla Model 3 - Uberturbine Wheel
    Model Years
    2020-2023
    Size + Offset
    20x9.0" +34
    Bolt Pattern
    5x114.3
    Center Bore
    64.1mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 lb-ft
    Weight (lbs)
    32 lbs
    Weight (kgs)
    14.52 kgs
    Standard/Optional
    Standard on Performance Models
    OEM Tire Size
    235/35R20
    Tire Overall Diameter
    26.5"
    Tesla-Installed Tire
    Pirelli P Zero

    2017-2023 Tesla Model 3 / Model 3 Performance

    Wheel & Tire Guide for UP Wheels

    UP-02
    18" 19" 20"
    Model Years
    All Years
    Size + Offset
  • Front: 18x9+33 Rear: 18x9+33
  • Front: 18x9+20 Rear: 18x9+20
  • Front: 18x9.5+35 Rear: 18x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    18x9+20 - 19.1 lbs
    Weight (kgs)
    18x9+20 - 8.66 kg
    Recommended Tire Size
  • 245/45R18 / 245/45R18 - Front: 18x9+33 Rear: 18x9+33
  • 245/45R18 / 245/45R18 - Front: 18x9+20 Rear: 18x9+20
  • 265/40R18 / 265/40R18 - Front: 18x9.5+35 Rear: 18x9.5+35
  • Model Years
    All Years
    Size + Offset
  • Front: 19x9+33 Rear: 19x9+33
  • Front: 19x9.5+35 Rear: 19x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    19x9+33 - 20.5
    Weight (kgs)
    19x9+33 - 9.30 kg
    Recommended Tire Size
  • 245/40R19 / 245/40R19 - Front: 19x9+33 Rear: 19x9+33
  • 265/35R19 / 265/35R19 - Front: 19x9.5+35 Rear: 19x9.5+35
  • Model Years
    All Years
    Size + Offset
  • Front: 20x9+33 Rear: 20x9+33
  • Front: 20x9.5+35 Rear: 20x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    20x9+33 - 21.5 lbs
    Weight (kgs)
    20x9+33 - 9.75 kg
    Recommended Tire Size
  • 245/35R20 / 245/35R20 - Front: 20x9+33 Rear: 20x9+33
  • 265/30R20 / 265/30R20 - Front: 20x9.5+35 Rear: 20x9.5+35
  • UP-03
    18" 19" 20"
    Model Years
    All Years
    Size + Offset
  • Front: 18x9+20 Rear: 18x9+20
  • Front: 18x9+33 Rear: 18x9+33
  • Front: 18x9.5+35 Rear: 18x9.5+35
  • Front: 18x10.9+37 Rear: 18x10.9+37
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
  • 18x9+20 - 19.62 lbs
  • 18x9+33 - 18.8 lbs
  • 18x9.5+35 - 19.82 lbs
  • 18x10.5+40 - 20.88 lbs
  • 18x10.9+22 - 21.90 lbs
  • 18x10.9+37 - 21.10 lbs
  • Weight (kgs)
  • 18x9+20 - 8.90 kg
  • 18x9+33 - 8.53 kg
  • 18x9.5+35 - 8.99 kg
  • 18x10.5+40 - 9.47 kg
  • 18x10.9+22 - 9.93 kg
  • 18x10.9+37 - 9.57 kg
  • Recommended Tire Size
  • 245/45R18 / 245/45R18 - Front: 18x9+20 Rear: 18x9+20
  • 245/45R18 / 245/45R18 - Front: 18x9+33 Rear: 18x9+33
  • 265/40R18 / 265/40R18 - Front: 18x9.5+35 Rear: 18x9.5+35
  • 295/35R18 / 295/35R18 - Front: 18x10.9+37 Rear: 18x10.9+37
  • Model Years
    All Years
    Size + Offset
  • Front: 19x9+25 Rear: 19x10+30
  • Front: 19x9+33 Rear: 19x9+33
  • Front: 19x9.5+35 Rear: 19x9.5+35
  • Front: 19x10+30 Rear: 19x10+30
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
  • 19x9+33 - 20.00 lbs
  • 19x9.5+35 - 20.56 lbs
  • 19x10.5+40 - 21.04 lbs
  • Weight (kgs)
  • 19x9+33 - 9.07 kg
  • 19x9.5+35 - 9.33 kg
  • 19x10.5+40 - 9.54 kg
  • Recommended Tire Size
  • 245/40R19 / 275/35R19 - Front: 19x9+25 Rear: 19x10+30
  • 245/40R19 / 245/40R19 - Front: 19x9+33 Rear: 19x9+33
  • 265/35R19 / 265/35R19 - Front: 19x9.5+35 Rear: 19x9.5+35
  • 275/35R19 / 275/35R19 - Front: 19x10+30 Rear: 19x10+30
  • Model Years
    All Years
    Size + Offset
  • Front: 20x9+25 Rear: 20x10+30
  • Front: 20x9+33 Rear: 20x9+33
  • Front: 20x9.5+35 Rear: 20x9.5+35
  • Front: 20x10+30 Rear: 20x10+30
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
  • 20x9+33 - 21.38 lbs
  • 20x9.5+35 - 21.46 lbs
  • 20x10.5+40 - 21.98 lbs
  • 21x10.5+40 - 24.08 lbs
  • Weight (kgs)
  • 20x9+33 - 9.70 kg
  • 20x9.5+35 - 9.73 kg
  • 20x10.5+40 - 9.97 kg
  • 21x10.5+40 -10.92 kg
  • Recommended Tire Size
  • 235/35R20 / 275/30R20 - Front: 20x9+25 Rear: 20x10+30
  • 245/35R20 / 245/35R20 - Front: 20x9+33 Rear: 20x9+33
  • 265/30R20 / 265/30R20 - Front: 20x9.5+35 Rear: 20x9.5+35
  • 275/30R20 / 275/30R20 - Front: 20x10+30 Rear: 20x10+30
  • UP-04
    18" 19" 20"
    Model Years
    All Years
    Size + Offset
  • Front: 18x9+33 Rear: 18x9+33
  • Front: 18x9+20 Rear: 18x9+20
  • Front: 18x9.5+35 Rear: 18x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    Weight (kgs)
    Recommended Tire Size
  • 245/45R18 / 245/45R18 - Front: 18x9+33 Rear: 18x9+33
  • 245/45R18 / 245/45R18 - Front: 18x9+20 Rear: 18x9+20
  • 265/40R18 / 265/40R18 - Front: 18x9.5+35 Rear: 18x9.5+35
  • Model Years
    All Years
    Size + Offset
  • Front: 19x9+33 Rear: 19x9+33
  • Front:19x9.5+35 Rear: 19x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    Weight (kgs)
    Recommended Tire Size
  • 245/40R19 / 245/40R19 - Front: 19x9+33 Rear: 19x9+33
  • 265/35R19 / 265/35R19 - Front: 19x9.5+35 Rear: 19x9.5+35
  • Model Years
    All Years
    Size + Offset
  • Front: 20x9+33 Rear: 20x9+33
  • Front: 20x9.5+35 Rear: 20x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    Weight (kgs)
    Recommended Tire Size
  • 245/35R20 / 245/35R20 - Front: 20x9+33 Rear: 20x9+33
  • 265/30R20 / 265/30R20 - Front: 20x9.5+35 Rear: 20x9.5+35
  • UP-05
    18" 19" 20"
    Model Years
    All Years
    Size + Offset
  • Front: 18x9+20 Rear: 18x9+20
  • Front: 18x9+33 Rear: 18x9+33
  • Front: 18x9.5+35 Rear: 18x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
  • 18x9+20 - 20.88 lbs
  • 18x9+33 - 21.30 lbs
  • 18x9.5+35 - 21.52 lbs
  • Weight (kgs)
  • 18x9+20 - 9.47 kg
  • 18x9+33 - 9.66 kg
  • 18x9.5+35 - 9.76 kg
  • Recommended Tire Size
  • 245/45R18 / 245/45R18 - Front: 18x9+20 Rear: 18x9+20
  • 245/45R18 / 245/45R18 - Front: 18x9+33 Rear: 18x9+33
  • 265/40R18 / 265/40R18 - Front: 18x9.5+35 Rear: 18x9.5+35
  • Model Years
    All Years
    Size + Offset
  • Front: 19x9+25 Rear: 19x10+30
  • Front: 19x9+33 Rear: 19x9+33
  • Front: 19x9.5+35 Rear: 19x9.5+35
  • Front: 19x10+30 Rear: 19x10+30
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
  • 19x9+33 - 22.64 lbs
  • 19x9.5+35 - 22.80 lbs
  • 19x10.5+40 - 23.22 lbs
  • Weight (kgs)
  • 19x9+33 - 10.27 kg
  • 19x9.5+35 - 10.34 kg
  • 19x10.5+40 - 10.53 kg
  • Recommended Tire Size
  • 245/40R19 / 275/35R19 - Front: 19x9+25 Rear: 19x10+30
  • 245/40R19 / 245/40R19 - Front: 19x9+33 Rear: 19x9+33
  • 265/35R19 / 265/35R19 - Front: 19x9.5+35 Rear: 19x9.5+35
  • 275/35R19 / 275/35R19 - Front: 19x10+30 Rear: 19x10+30
  • Model Years
    All Years
    Size + Offset
  • Front: 20x9+25 Rear: 20x10+30
  • Front: 20x9+33 Rear: 20x9+33
  • Front: 20x9.5+35 Rear: 20x9.5+35
  • Front: 20x10+30 Rear: 20x10+30
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
  • 20x9+25 - 23.84 lbs
  • 20x9+33 - 23.76 lbs
  • 20x9.5+35 - 24.10 lbs
  • 20x10+30 - 24.82 lbs
  • 20x10.5+40 - 24.56 lbs
  • 21x9.5+35 - 25.62 lbs
  • 21x10.5+40 - 26.5 lbs
  • Weight (kgs)
  • 20x9+25 - 10.81 kg
  • 20x9+33 - 10.77 kg
  • 20x9.5+35 - 10.93 kg
  • 20x10+30 - 11.26 kg
  • 20x10.5+40 - 11.14 kg
  • 21x9.5+35 - 11.62 kg
  • 21x10.5+40 - 12.02 kg
  • Recommended Tire Size
  • 235/35R20 / 275/30R20 - Front: 20x9+25 Rear: 20x10+30
  • 245/35R20 / 245/35R20 - Front: 20x9+33 Rear: 20x9+33
  • 265/30R20 / 265/30R20 - Front: 20x9.5+35 Rear: 20x9.5+35
  • 275/30R20 / 275/30R20 - Front: 20x10+30 Rear: 20x10+30
  • CYBRHEX
    20"
    Model Years
    All Years
    Size + Offset
    Front: 20x9.5+35 Rear: 20x9.5+35
    Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    20x9.5+35 - 31.24 lbs
    Weight (kgs)
    20x9.5+35 - 14.17 kg
    Recommended Tire Size
    265/30R20 / 265/30R20 - Front: 20x9.5+35 Rear: 20x9.5+35
    UP X BBS FLUGPLATZ
    20"
    Model Years
    All Years
    Size + Offset
    Front: 20x9+32 Rear: 20x9+32
    Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    20x9+32 - 28.80 lbs
    Weight (kgs)
    20x9+32 - 13.07 kg
    Recommended Tire Size
    255/35R20 / 255/35R20 - Front: 20x9+32 Rear: 20x9+32
    UP.FIT Forged PD
    18"
    Model Years
    All Years
    Size + Offset
    Front: 18x8.5+30 Rear: 18x8.5+30
    Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    18x8.5+30 - 24.26 lbs
    Weight (kgs)
    18x8.5+30 - 11.01 kg
    Recommended Tire Size
    235/45R18 / 235/45R18 - Front: 20x9+32 Rear: 20x9+32
    UP-RW Wheel
    18" 19" 20"
    Model Years
    All Years
    Size + Offset
    Front: 18x8.5 +32 Rear: 18x8.5 +32
    Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    23.40lbs
    Weight (kgs)
    10.2kg
    Recommended Tire Size
    235/45 R18
    Model Years
    All Years
    Size + Offset
    19x8.5+32
    Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    23.54lbs
    Weight (kgs)
    10.7kg
    Recommended Tire Size
    235/40 19
    Model Years
    All Years
    Size + Offset
    20x8.5+32
    Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    25.96lbs
    Weight (kgs)
    11.8kg
    Recommended Tire Size
    235/35 20
    Tesla Model 3 – Wheel And Tire Guide
    Expert Wheel & Tire Guide Support
    Please get in touch with us if you need any additional info or more details regarding fitment, sizes, finishes, pricing or anything else regarding Tesla OEM or Unplugged Performance wheels & tires

      Unplugged Performance

      WHAT OUR CUSTOMERS SAY

      RATED 4.95 (282 REVIEWS)
      LEAVE A REVIEW

      With real reviews from real customers, shop UP products for your Tesla Model S, 3, X, Y and Cybertruck with confidence. Leave reviews and earn up to 2000 UP Rewards points each, redeemable towards exclusive UP Products.

      Christian N. November 28, 2025
      Amazing product that looks great and helps with efficiency! The quality is amazing.
      Christian N. November 27, 2025
      Extremely well built and engineered. Best on the market.
      Cordell November 24, 2025
      The "Road Warrior" Curb Guards work as advertised for the most part. I did not find them to be as "protective" as advertised in all the Youtube and promotional videos. Just a day after I installed my Road Warrior wheels, I hit a curb while turning at a slight angle. This damaged the curb guard as...
      Dean C. November 22, 2025
      Im impressed at the High quality. Love the subtle and clean look.
      Adam M. November 21, 2025
      Love the simple look to this decal
      edgar M. November 21, 2025
      Pretty awful. Package’s held for weeks for incorrect shipping details 700 dollars in import tax and broken products arriving …… very disappointed. Oh and never a timely response or method to contact other than email…..
      Brad November 21, 2025
      Had UP install the HD front bumper with the 11" LEDs. Robust steel construction, makes the truck look more aggressive but lines remain clean. This bumper is what Tesla should have equipped the truck with out of the factory! LEDs are super bright as well. Simply the best looking, best designed,...
      Megatron November 19, 2025
      Had UP install the HD rear bumper with hardcore trailer hitch receiver including flood lights. Utility is awesome, the arms are robustly built and carry my full-size spare, a 20" beadlock wheel with Wildpeak AT4Ws with ease. No rattling whatsoever, the tire is locked in. Swing arms themselves can...
      Megatron November 19, 2025
      Went with the burnt titanium, simply looks gorgeous with the finish!
      Megatron November 19, 2025
      Went with the burnt titanium, simply looks gorgeous with the finish.
      Megatron November 19, 2025
      Robust carbon steel construction. Lines look very clean with the HD front and rear bumper installed. Have not seen a cleaner looking aftermarket rock slider for the CT, love mine!
      Megatron November 19, 2025
      I had another set carbon steel running boards on my Cybertruck for a while and finally got to see the UP Invincible HD Rock Sliders while out at XTakeover this summer. They looked so good and were noticeably more sturdy than what I had on the truck. I replaced mine with a set of these HD Rock...
      Josh H. November 17, 2025
      While the overall weight reduction isn't much in totality, it is noticeably lighter compared to the original lug nuts.
      Josh H. November 17, 2025
      I had an issue of the camber being no longer able to be adjusted to specs. The friends of UP took care of me. Easy to swap as well. Went to a shop yo align it and car is up to specs again and straight as an arrow. Love it! Thank you UP!
      Kamil K. November 16, 2025
      Overall, I'm very happy with the UP Forged Road Warrior 19" Wheels that I got for my new Model Y Juniper. They look great and seem very sturdy. The service and communication from Unplugged was great especially with my salesman, Shahar. It took about 3 months for me to get my wheels but it was worth...
      Dean C. November 12, 2025
      Really nice jacket. A must have for a UP enthusiast!
      Montage Ø. November 12, 2025
      Unplugged Performance installed front/rear sway bars on my Model 3 Performance Highland. The change was instant: less body roll, flatter cornering, better grip, and precise control. It sharped handling without hurting ride comfort. This is a great value and would highly recommended.
      Alex H. November 12, 2025
      I received the lower compliance Aft arms today (fri), after ordering on mon. I wasn't sure I'd have time to install, since I already had a lot on my plate, but this afternoon I had a couple spare hours, it ended up only taking about 45 min, including getting the Tesla on jack stands. my...
      Rob T. November 09, 2025
      Finally!!!! Been waiting on UP to both have a decent Black Friday sale and to have this item on it and whatdoyaknow…..HALF OFF! I wish it was all gray everywhere, but I’ll do the touch up myself and get it 100% how I need it!!!
      Montage Ø. November 07, 2025
      Unplugged Performance Newsletter
      Subscribe to our Newsletter
      Sign up to get the latest updates on UP Products, news, galleries and offers!
      Please select all Tesla models you are interested in:
      FEATURED IN
      TeslaRati Logo 1
      Automobile Magazine Logo 1
      MotorTrend Logo 1
      AutoBlog Logo 1
      TopGear Logo 1
      Car and Driver Logo 1
      Road and Track Logo 1
      The Drive Logo 1
      AutoWeek Logo 1
      The Joe Rogan Experience Logo 1
      Unplugged Performance is the world leader in premium performance upgrades for Tesla vehicles. With our USA-made line of stylish and high-performance parts, our sole focus is on holistic development and improvement of all Tesla cars.
      Unplugged Performance was founded and incubated by the team behind the world-renowned automotive customizer Bulletproof Automotive. Unplugged Performance is the world's leading company focused on the customization and sports performance of Tesla Motors vehicles.
      All of our parts are researched and engineered on our own development vehicles with the intention of improving every aspect of the driving and ownership experience. Unplugged produces an exclusive range of premium upgrades to give a new sporty performance identity to Tesla Model S, Model X, Model 3, Model Y, and the Cybertruck.
      Improving on perfection is no easy task, and to do so Unplugged products are professionally designed, prototyped, and manufactured in-house in Hawthorne, CA, and in collaboration with the best motorsports suppliers. The supercar performance of Tesla vehicles meets supercar-grade enhancements with Unplugged Performance.
      Tesla Model Y - Premium Aftermarket Upgrades And Products
      GUARANTEED SAFE CHECKOUT WITH THESE PREMIUM PAYMENT OPTIONS
      Payment Options - American Express, Discover, Visa, MasterCard, JCB, Maestro Credit Cards Payment Options - Apple Pay, PayPal, Splitit, Dinser Club International, Union Pay Credit Cards
      TESLA, TESLA MOTORS, and all related brands, marks and intellectual property including but not limited to TESLA ROADSTER, TESLA CYBERTRUCK, MODEL S, MODEL 3, MODEL X, MODEL Y, and the "TESLA," "T" logos designs are trademarks or registered trademarks of Tesla Motors, Inc. in the United States and other countries. Unplugged Performance has no official relationship with Tesla Motors.
      THESE PRODUCTS CAN EXPOSE YOU TO CHEMICALS WHICH ARE KNOWN BY THE STATE OF CALIFORNIA TO CAUSE CANCER, OR BIRTH DEFECTS, OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION PLEASE VISIT WWW.P65WARNINGS.CA.GOV
      COPYRIGHT © 2025 UNPLUGGED PERFORMANCE®. ALL RIGHTS RESERVED.
      THE UNPLUGGED PERFORMANCE® MARK AND LOGO ARE TRADEMARKS OF UNPLUGGED PERFORMANCE INC. ALL RIGHTS RESERVED. PLEASE REVIEW THE TERMS & CONDITIONS AND PRIVACY POLICY BEFORE USING OUR WEBSITE.
      close
