2016+ Tesla Model X / Model X Plaid
The Tesla Model X, renowned for its Falcon Wing doors, is designed for versatility and luxury. Factory wheel options include 20″ Slipstream Wheels for all-season use and 22″ Turbine Wheels for a commanding road presence. For those seeking aftermarket upgrades, Unplugged Performance UP-05 forged wheels deliver superior strength for towing applications. The 5×120 bolt pattern and a large center bore support the Model X’s advanced suspension system, ensuring compatibility with a range of tires. Recommended fitments include all-season or performance tires that balance grip, range, and durability for the Model X’s unique capabilities.
Tesla Model X (2016+)
OEM Wheel & Tire Guide
BELOW IS THE COLLECTION for Tesla Model X (2016+)

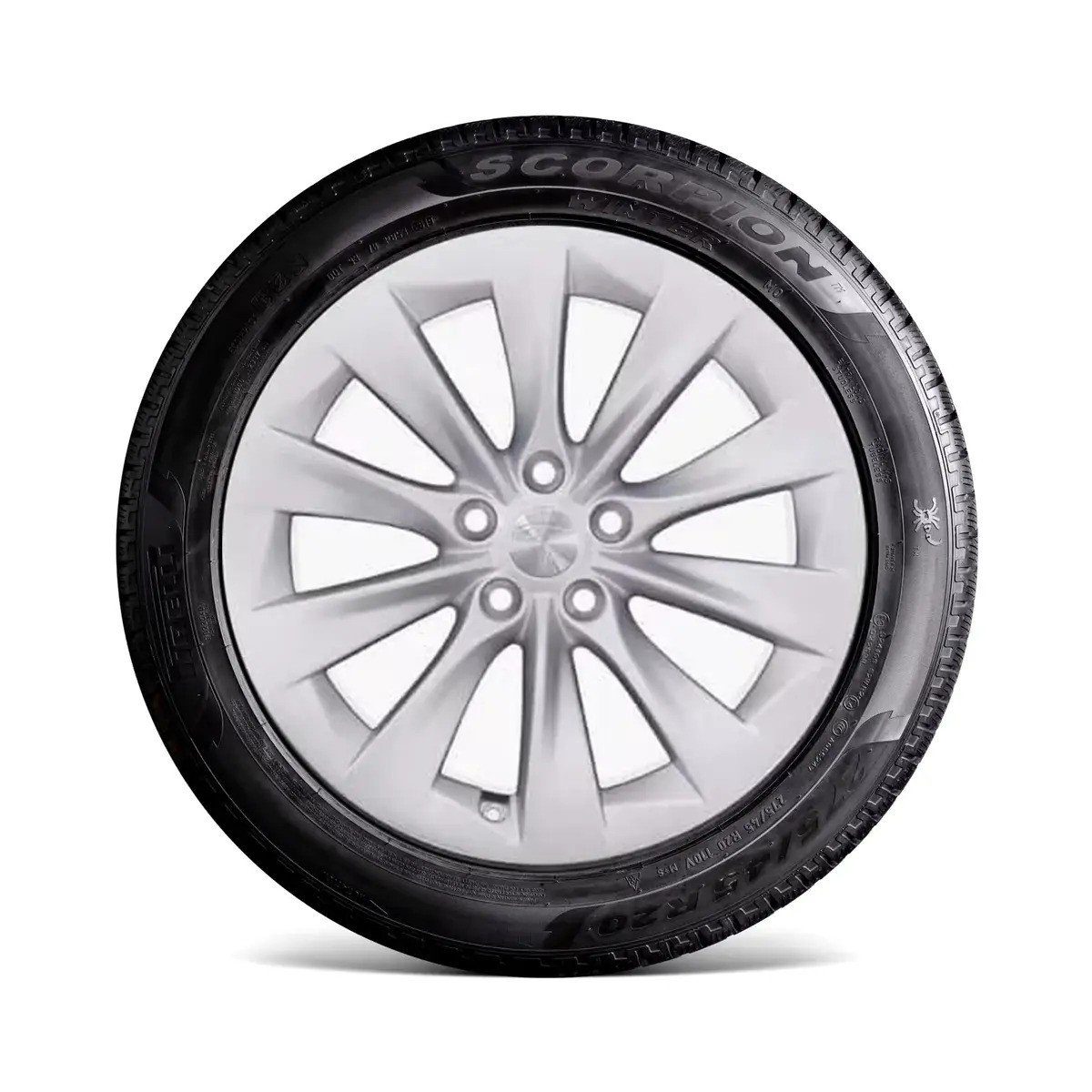

20" TESLA MODEL X - SLIPSTREAM WHEELS
Model Years
2016-2020
Size + Offset
Front: 20x9.0" +35 / Rear: 20x9.5" +35
Bolt Pattern
5x120
Center Bore
64.1mm
Lug Nut Size
21 mm / 14x1.50 Thread
Lug Nute Torque Spec
129 lb-ft
Weight (lbs)
Front: 32 lbs / Rear: 33 lbs
Weight (kgs)
Front: 14.52 kgs / Rear: 14.97 kgs
Standard/Optional
Silver - Standard / Sonic Carbon - Optional: $4,300
OEM Tire Size
Front: 265/45R20 / Rear: 275/45R20
Tire Overall Diameter
Front: 29.4" / Rear: 29.7"
Tesla-Installed Tire
Continental CrossContact LX Sport

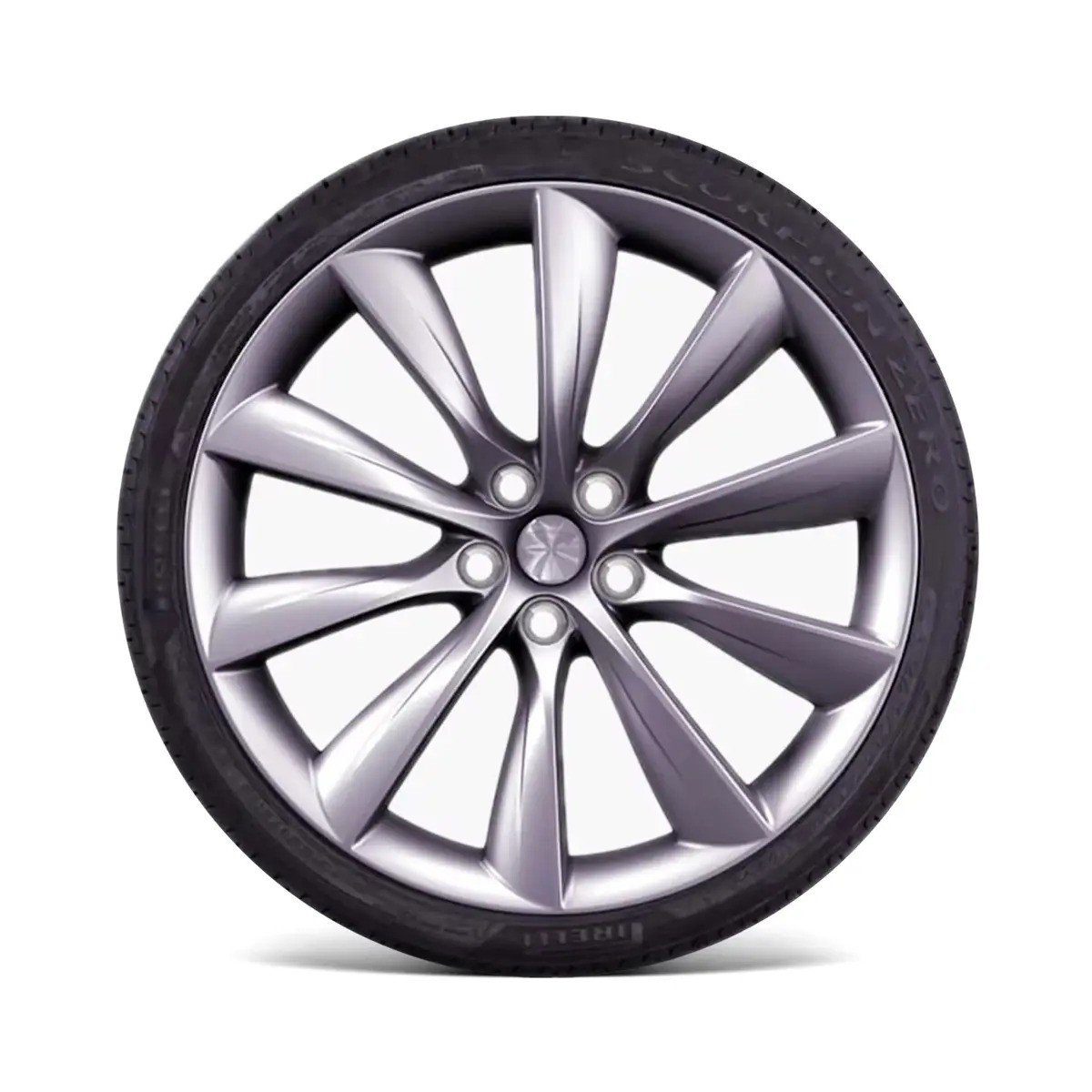

22" TESLA MODEL X - TURBINE WHEELS
Model Years
2016-2020
Size + Offset
Front: 22x9.0" +35 / Rear: 22x10.0" +35
Bolt Pattern
5x120
Center Bore
64.1mm
Lug Nut Size
21 mm / 14x1.50 Thread
Lug Nute Torque Spec
129 lb-ft
Weight (lbs)
Front: 37.6 lbs / Rear: 40.5 lbs
Weight (kgs)
Front: 17.06 kgs / Rear: 18.37 kgs
Standard/Optional
Optional: $5,500
OEM Tire Size
Front: 265/35R22 / Rear: 285/35R22
Tire Overall Diameter
Front: 29.3" / Rear: 29.9"
Tesla-Installed Tire
Pirelli Sorpion Zero All Season

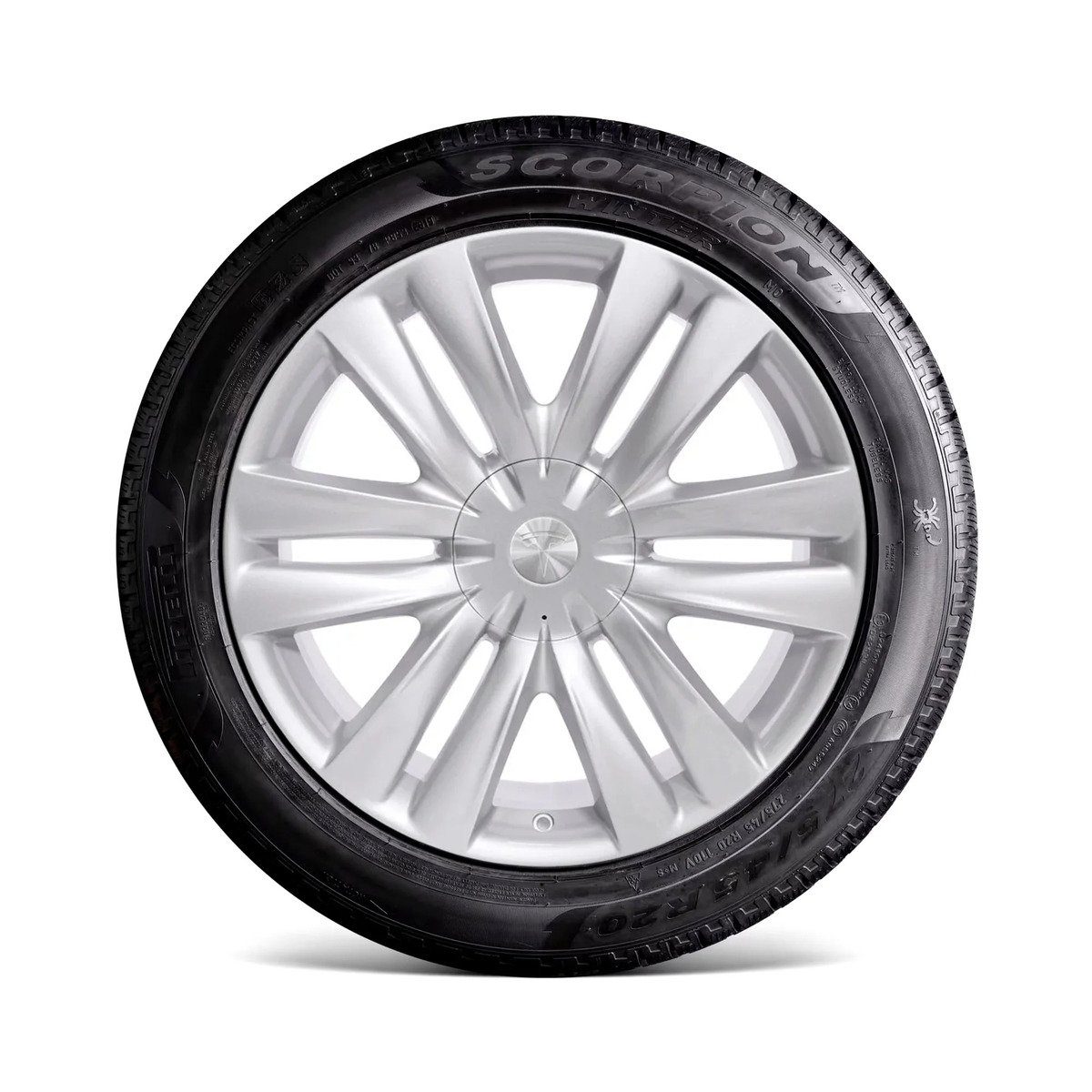

20" TESLA MODEL X - HELIX WHEEL
Model Years
2016-2020
Size + Offset
Front: 22x9.0" +35 / Rear: 22x10.0" +35
Bolt Pattern
5x120
Center Bore
64.1mm
Lug Nut Size
21 mm / 14x1.50 Thread
Lug Nute Torque Spec
129 lb-ft
Weight (lbs)
Front: 34.5 lbs / Rear: 36.4 lbs
Weight (kgs)
Front: 15.65 kgs / Rear: 16.51 kgs
Standard/Optional
Optional: $2,500
OEM Tire Size
Front: 265/45R20 / Rear: 275/45R20
Tire Overall Diameter
Front: 29.4" / Rear: 29.7"
Tesla-Installed Tire
Continental CrossContact LX Sport

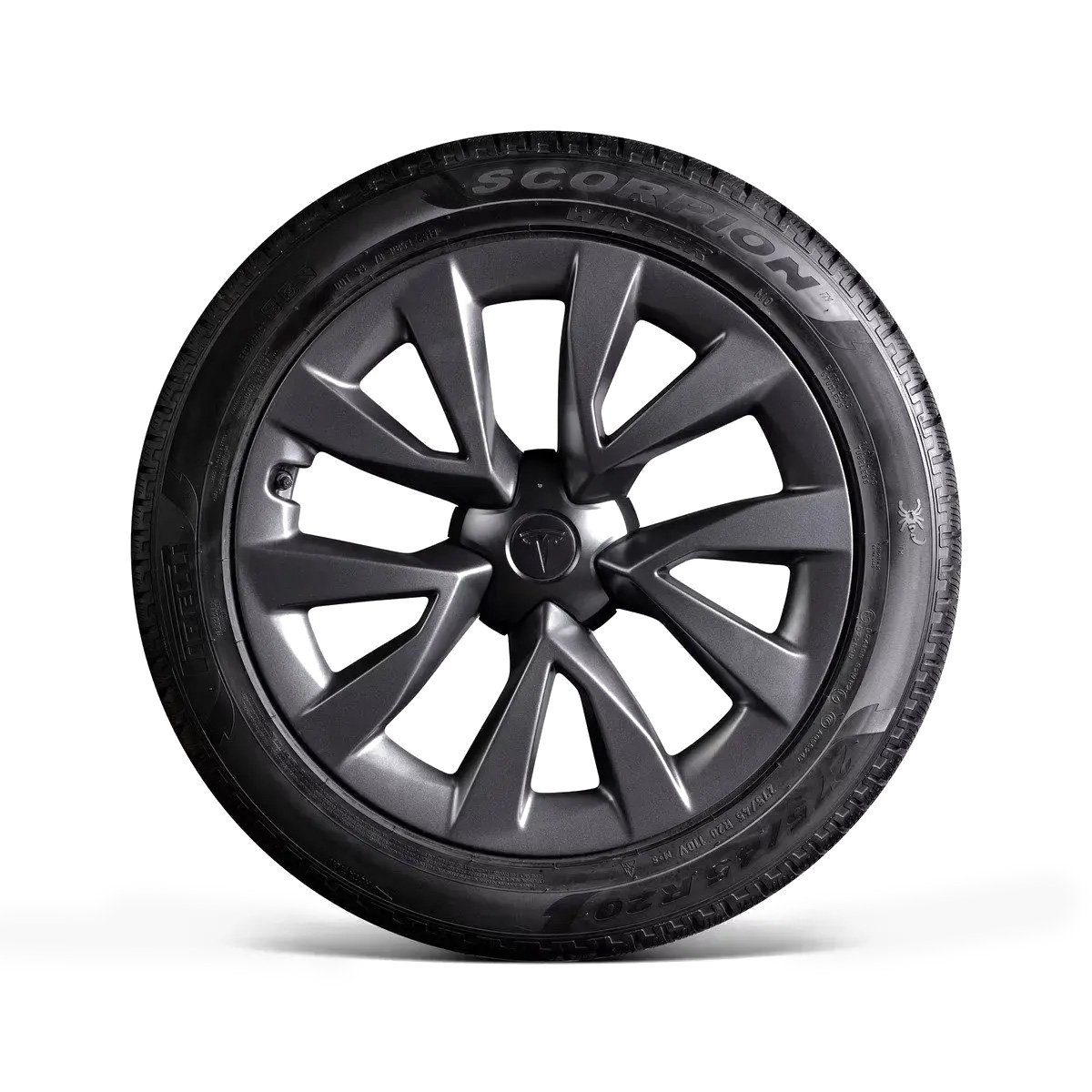

20" TESLA MODEL X - CYBERTREAM WHEEL
Model Years
2021+
Size + Offset
Front: 20x9.0" +40 / Rear: 20x10.0" +35
Bolt Pattern
5x120
Center Bore
64.1mm
Lug Nut Size
21 mm / 14x1.50 Thread
Lug Nute Torque Spec
129 lb-ft
Weight (lbs)
Front: 33.5 lbs / Rear: 35 lbs
Weight (kgs)
Front: 15.2 kgs / Rear: 15.88 kgs
Standard/Optional
Standard
OEM Tire Size
Front: 265/45R20 / Rear: 275/45R20
Tire Overall Diameter
Front: 29.4" / Rear: 29.7"
Tesla-Installed Tire
Continental CrossContact LX Sport

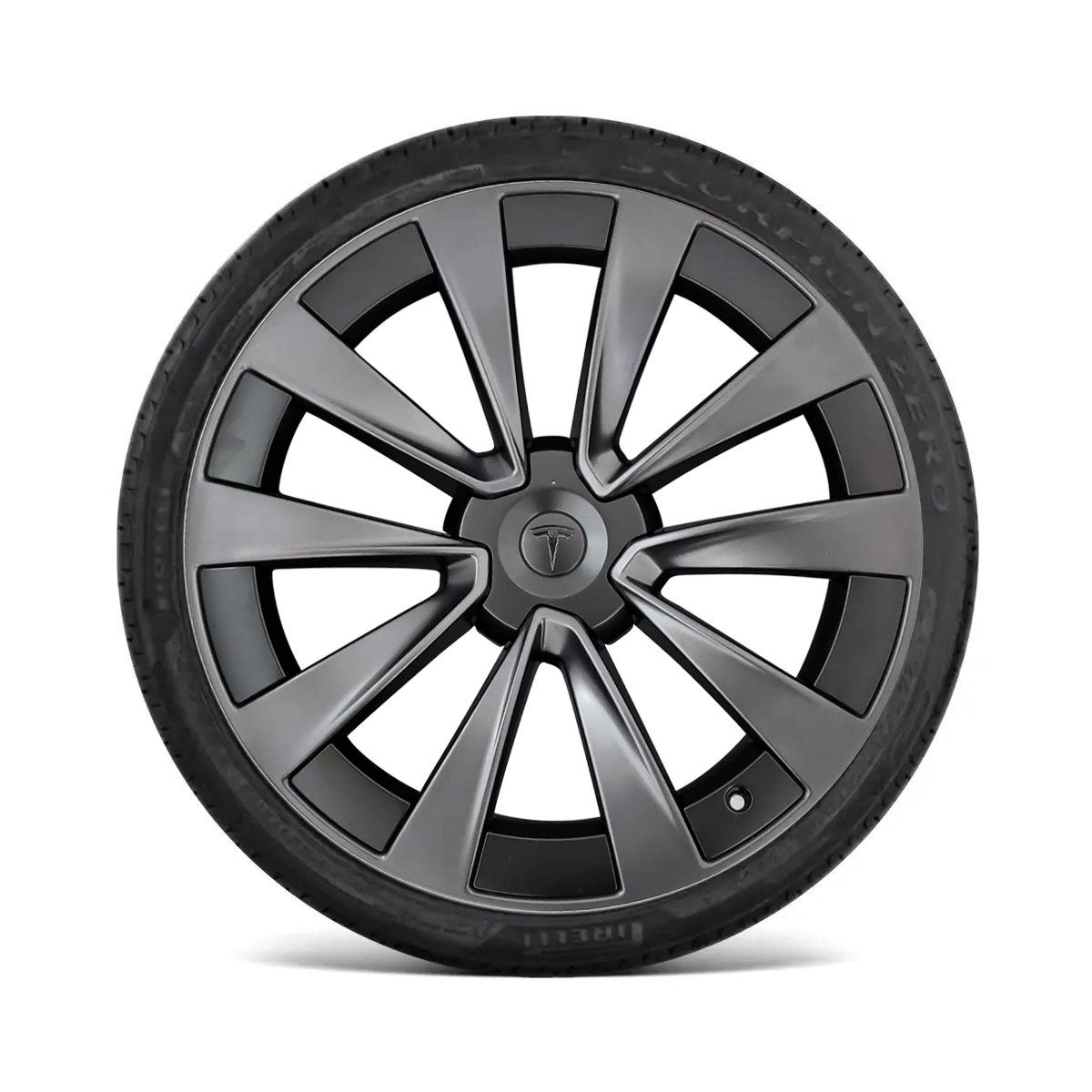

22" TESLA MODEL X - TURBINE WHEEL
Model Years
2021+
Size + Offset
Front: 22x9.0" +35 / Rear: 22x10.0" +35
Bolt Pattern
5x120
Center Bore
64.1mm
Lug Nut Size
21 mm / 14x1.50 Thread
Lug Nute Torque Spec
129 lb-ft
Weight (lbs)
Front: 36.6 lbs / Rear: 41.6 lbs
Weight (kgs)
Front: 16.60 kgs / Rear: 18.87 kgs
Standard/Optional
Optional: $5,500
OEM Tire Size
Front: 265/35R22 / Rear: 285/35R22
Tire Overall Diameter
Front: 29.3" / Rear: 29.9"
Tesla-Installed Tire
Pirelli Sorpion Zero All Season
Tesla Model X
Wheel & Tire Guide for UP Wheels
UP-02
20"
21"
22"
Model Years
2021+
Size + Offset
Bolt Pattern
5x120
Center Bore
64.1 mm
Lug Nut Size
21 mm / 14x1.50 Thread
Lug Nute Torque Spec
129 ft-lbs
Weight (lbs)
20x10+35 - 24.77 lbs
Weight (kgs)
20x10+35 -11.23 kg
Recommended Tire Size
Model Years
2021+
Size + Offset
Bolt Pattern
5x120
Center Bore
64.1 mm
Lug Nut Size
21 mm / 14x1.50 Thread
Lug Nute Torque Spec
129 ft-lbs
Weight (lbs)
Weight (kgs)
Recommended Tire Size
Model Years
2021+
Size + Offset
Bolt Pattern
5x120
Center Bore
64.1 mm
Lug Nut Size
21 mm / 14x1.50 Thread
Lug Nute Torque Spec
129 ft-lbs
Weight (lbs)
22x10+35 - 28.74 lbs
Weight (kgs)
22x10+35 - 13.04 kg
Recommended Tire Size

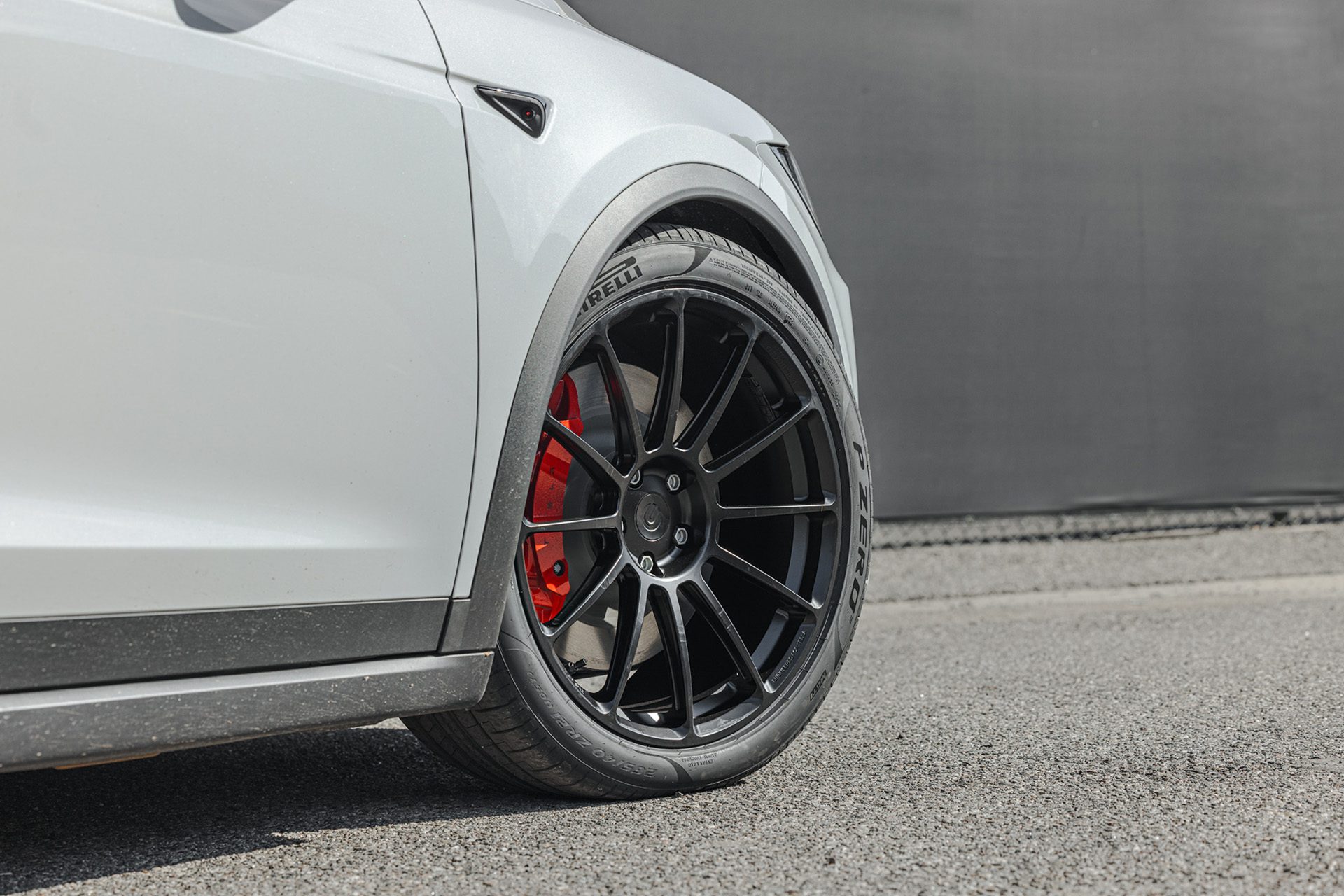

UP-03
20"
21"
22"
Model Years
2021+
Size + Offset
Bolt Pattern
5x120
Center Bore
64.1 mm
Lug Nut Size
21 mm / 14x1.50 Thread
Lug Nut Torque Spec
129 ft-lbs
Weight (lbs)
Weight (kgs)
Recommended Tire Size
Model Years
2021+
Size + Offset
Bolt Pattern
5x120
Center Bore
64.1 mm
Lug Nut Size
21 mm / 14x1.50 Thread
Lug Nut Torque Spec
129 ft-lbs
Weight (lbs)
Weight (kgs)
Recommended Tire Size
Model Years
2021+
Size + Offset
Bolt Pattern
5x120
Center Bore
64.1 mm
Lug Nut Size
21 mm / 14x1.50 Thread
Lug Nut Torque Spec
129 ft-lbs
Weight (lbs)
Weight (kgs)
Recommended Tire Size
UP-04
20"
21"
22"
Model Years
2021+
Size + Offset
Bolt Pattern
5x120
Center Bore
64.1 mm
Lug Nut Size
21 mm / 14x1.50 Thread
Lug Nut Torque Spec
129 ft-lbs
Weight (lbs)
Weight (kgs)
Recommended Tire Size
Model Years
2021+
Size + Offset
Bolt Pattern
5x120
Center Bore
64.1 mm
Lug Nut Size
21 mm / 14x1.50 Thread
Lug Nut Torque Spec
129 ft-lbs
Weight (lbs)
Weight (kgs)
Recommended Tire Size
Model Years
2021+
Size + Offset
Bolt Pattern
5x120
Center Bore
64.1 mm
Lug Nut Size
21 mm / 14x1.50 Thread
Lug Nut Torque Spec
129 ft-lbs
Weight (lbs)
Weight (kgs)
Recommended Tire Size
UP-05
20"
21"
22"
Model Years
2021+
Size + Offset
Bolt Pattern
5x120
Center Bore
64.1 mm
Lug Nut Size
21 mm / 14x1.50 Thread
Lug Nut Torque Spec
129 ft-lbs
Weight (lbs)
Weight (kgs)
Recommended Tire Size
Model Years
2021+
Size + Offset
Bolt Pattern
5x120
Center Bore
64.1 mm
Lug Nut Size
21 mm / 14x1.50 Thread
Lug Nut Torque Spec
129 ft-lbs
Weight (lbs)
Weight (kgs)
Recommended Tire Size
Model Years
2021+
Size + Offset
Bolt Pattern
5x120
Center Bore
64.1 mm
Lug Nut Size
21 mm / 14x1.50 Thread
Lug Nut Torque Spec
129 ft-lbs
Weight (lbs)
Weight (kgs)
Recommended Tire Size
CYBRHEX
20"
21"
22"
Model Years
2021+
Size + Offset
Front: 20x9.5 Rear: 20x10.5+35
Bolt Pattern
5x120
Center Bore
64.1 mm
Lug Nut Size
21 mm / 14x1.50 Thread
Lug Nut Torque Spec
129 ft-lbs
Weight (lbs)
Weight (kgs)
Recommended Tire Size
265/45R20 / 285/45R20 - Front: 20x9.5+35 Rear: 20x10.5+35
Model Years
2021+
Size + Offset
Front: 21x9.5+35 Rear: 21x10.5+35
Bolt Pattern
5x120
Center Bore
64.1 mm
Lug Nut Size
21 mm / 14x1.50 Thread
Lug Nut Torque Spec
129 ft-lbs
Weight (lbs)
Weight (kgs)
Recommended Tire Size
265/40R21 / 285/40R21 Front: 21x9.5+35 Rear: 21x10.5+35
Model Years
2021+
Size + Offset
Front: 22x9.5+35 Rear 22x10.5+35
Bolt Pattern
5x120
Center Bore
64.1 mm
Lug Nut Size
21 mm / 14x1.50 Thread
Lug Nut Torque Spec
129 ft-lbs
Weight (lbs)
Weight (kgs)
Recommended Tire Size
265/35R22 / 285/35R22 - Front: 22x9.5+35 Rear: 22x10.5+35
